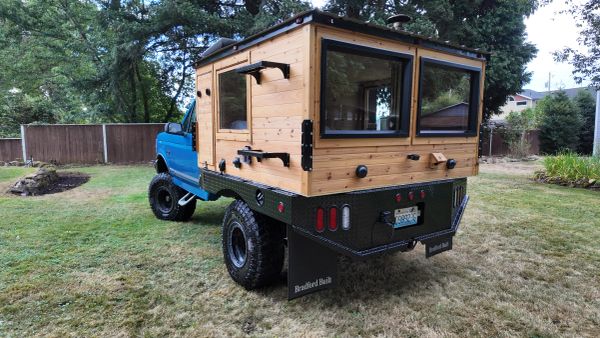

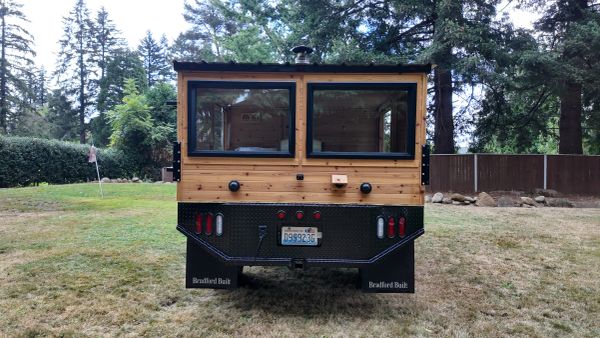

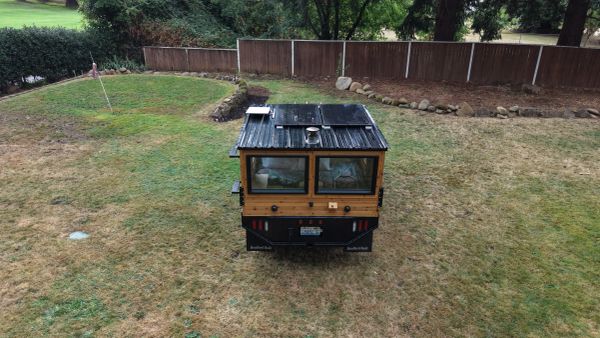

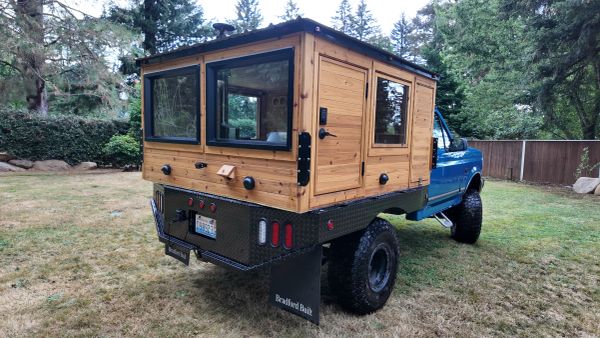

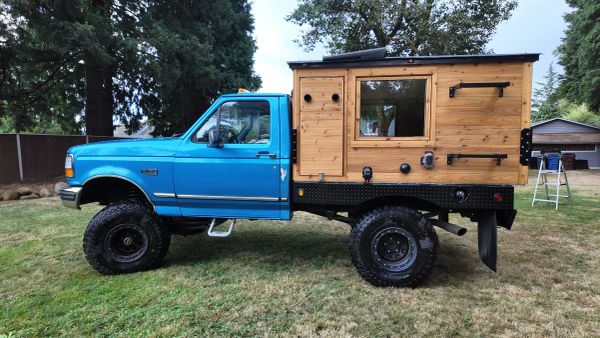

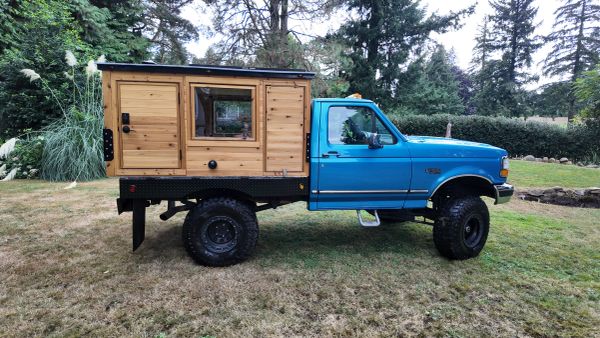

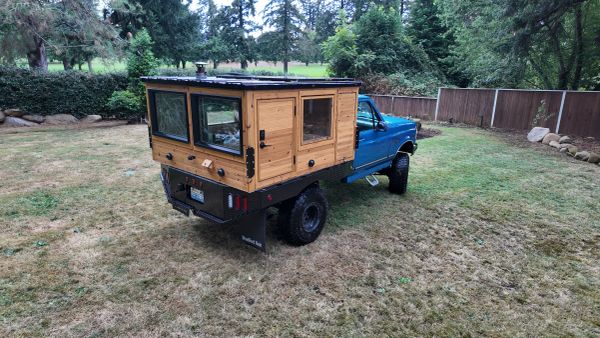

Exterior Photos
Interior Walk-Through
Current Build For Sale
The Custom Truck Cabin Build Details as Followed:
Structural Elements:
- Galvanized metal under-flashing.
- Douglas fir framing.
- 1/2-inch sheathing (for added shear strength).
- (8) 5000 lb. swivel-jack mounts, welded and bolted to frame (for removing and installing cabin).
- (6) Grade 8 bolts attaching the cabin to the flatbed via the base framing.
- XPS foam board insulation (floor, walls, ceiling, and door).
- Weather wrapped.
- Milgard windows.
- Cedar ship-lap/Stain and Sealed Soffit exterior siding.
- Oil-based stain and sealant used on cedar.
- Metal roofing.
Interior Details:
- Custom-milled 1/4-inch Douglas fir plywood ship-lap interior siding.
- Luxury vinyl plank flooring.
- Full-size bed space in the cab-over section.
- Pre-sanded 1/2-inch & 3/4-inch plywood framing for storage compartments.
Amenities:
- Wood-fired stove (Cubic Mini Grizzly wood stove).
- Solar system: 200 amp hour 12.8 V battery, 2000 watt AC inverter, 60 amp charge controller, and 800 watts of solar panels on roof.
- IceCo refrigerator (solar system powered).
- Air conditioning unit 5000 BTU (solar system powered).
- 5.1 (5 main speakers, 1 subwoofer) surround sound system (solar system powered).
- LED lighting (solar system powered).
- 30 gallon fresh water tank (pump is solar powered).
- Fold-out cook top (propane powered).
The build is fully insulated, water tight, winter tested (in the rainy PNW), and fully constructed using top-of-the-line material choices.
NO PERSONAL CONTENTS OF CAMPER PICTURED ARE INCLUDED
The Truck Details are as Follows:
- 1990 Ford F350 Dually.
-About 140,000 Miles.
- Rear-wheel drive (heavier payload capacity than 4 wheel drive).
- 7.5 liter (460 cubic inch) gas engine.
- Five speed manual transmission.
- New water pump, coolant lines, radiator and starter.
- Motorcycle front tire guide on the lift gate.
- Runs flawlessly.
Custom Truck Cabins - Custom Builds
The core aspects of Custom Truck Cabin builds are large windows, spacious floor plans, wood stoves & nostalgic cedar smells.
Shoot me an email and we can schedule a phone call to discuss a fully custom build.
